WannaCry.exe - An Analysis

The final course objective of Matt Kiely’s Practical Malware Analysis & Triage was to create a triage report for any sample in the course.

I chose the WannaCry Ransomware.

Executive Summary

HashType	Sum
sha256	24D004A104D4D54034DBCFFC2A4B19A11F39008A575AA614EA04703480B1022C

WannaCry.exe is ransomware that appeared in 2017. It consists of one executable that contains several other binaries in it. Once executed with Administrative privieges, the ransomware begins encrypting the files on the victim’s storage. WannaCry also attempts to reach out to other hosts on the netork via SMB and attempts to infect them. Once infected, the host will begin seeing a changed background and message dialog alerting them that their files have been encrypted and where they can send payment if they want them decrypted.

The YARA rule to identify WannaCry.exe is the last section of this report.

High Level Technical Summary

"Execute as Administrator" -> Check www.iuqerfsodp9ifjaposdfjhgosurijfaewrwergwea.com/
If "Host can resolve address" then
--> [Yes] "Do nothing"
else
-->  [Cannot be reached] "Enabled persistence"
--> "Begin encrypting files"
--> "Display Ransom notices"
--> "Continue encrypting any new files"
--> "Attempt to spread via SMB port 445"
Endif

Malware Composition

WannaCry or in this instance Ransomware.wannacry.exe is a single binary that executes on the system and creates all necessary assets on the system for encryption of all files.

skin rose

skinparam componentStyle uml2

class WannaCry {
  Creates MS Service for persistence
  ..
  Unpack resources for Ransom notice
  ..
  Encrypt files
}

Analysis

Basic Static Analysis

HashType	Sum
md5	DB349B97C37D22F5EA1D1841E3C89EB4
sha1	E889544AFF85FFAF8B0D0DA705105DEE7C97FE26
sha256	24D004A104D4D54034DBCFFC2A4B19A11F39008A575AA614EA04703480B1022C

32-bit Portable Executable

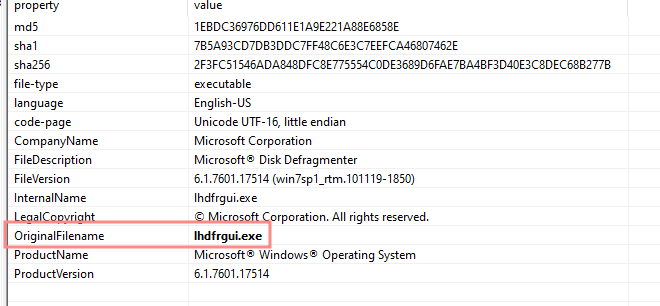

Original filename of sample: lhdfrgui.exe

Interesting Strings

The following strings in the binary have been found noteworthy:

http://www.iuqerfsodp9ifjaposdfjhgosurijfaewrwergwea.com
%s -m security
C:\%s\qeriuwjhrf
C:\%s\%s
tasksche.exe
icacls . /grant Everyone:F /T /C /Q
\\172.16.99.5\IPC$
\\192.168.56.20\IPC$
WanaCrypt0r
WANACRY!
mssecsvc.exe
cmd.exe /c "%s"
DeleteCriticalSection
attrib +h .

There were also four references to:

!This program cannot be run in DOS mode.

This could be an indication that there are other, complete binaries in the package.

Basic Dynamic Analysis

No Internet Detonation

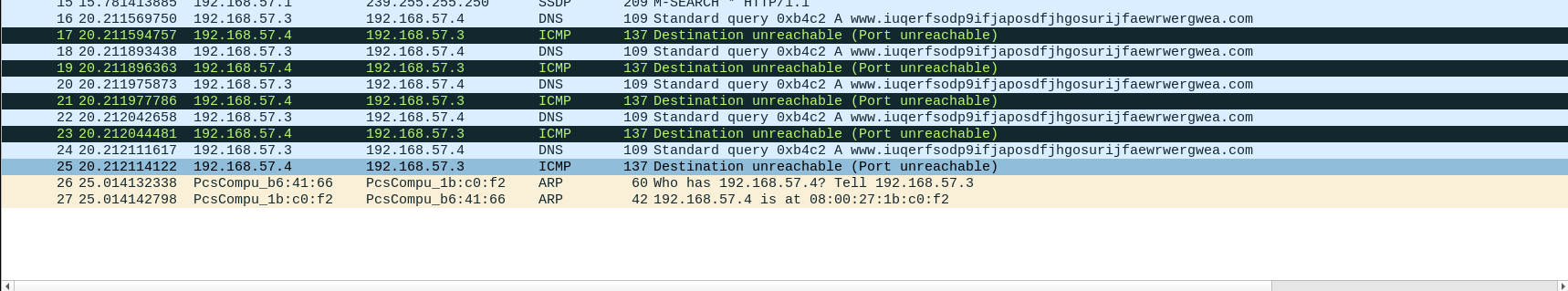

At execution, queries are being made to domains:

In particulr:

www.iuqerfsodp9ifjaposdfjhgosurijfaewrwergwea.com: type A, class IN

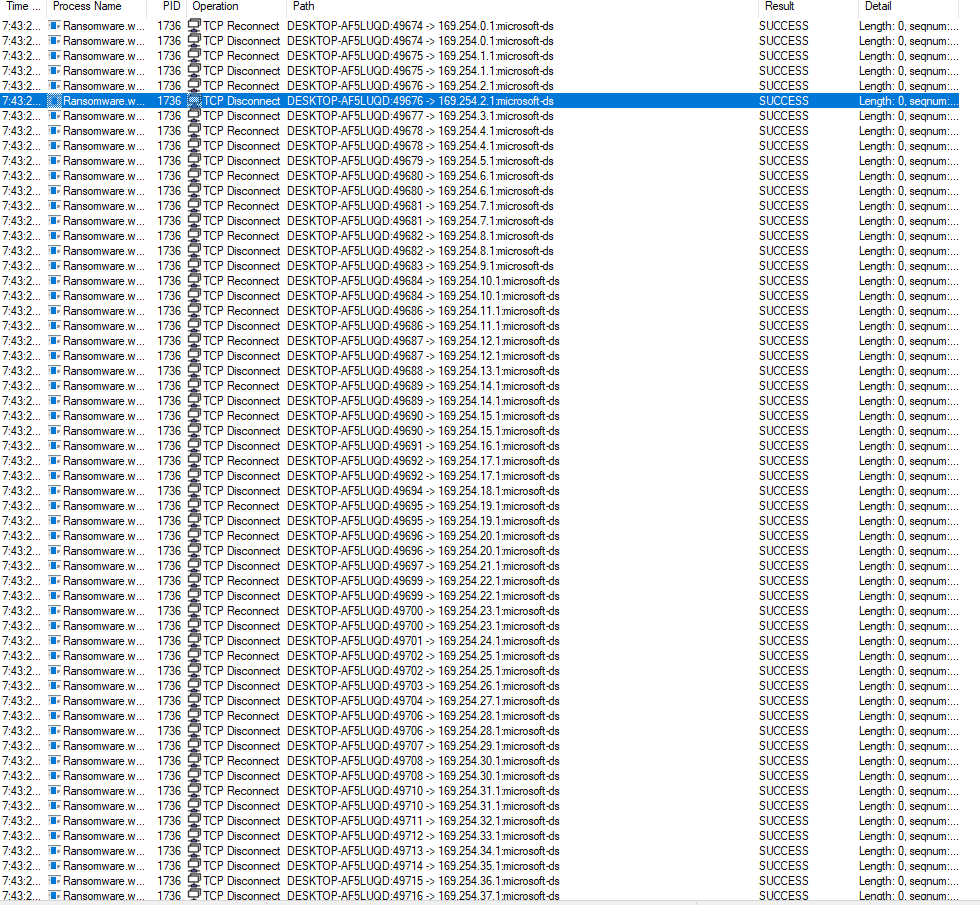

Constant checking of connection

Is this querying for NFS and SMB shares?

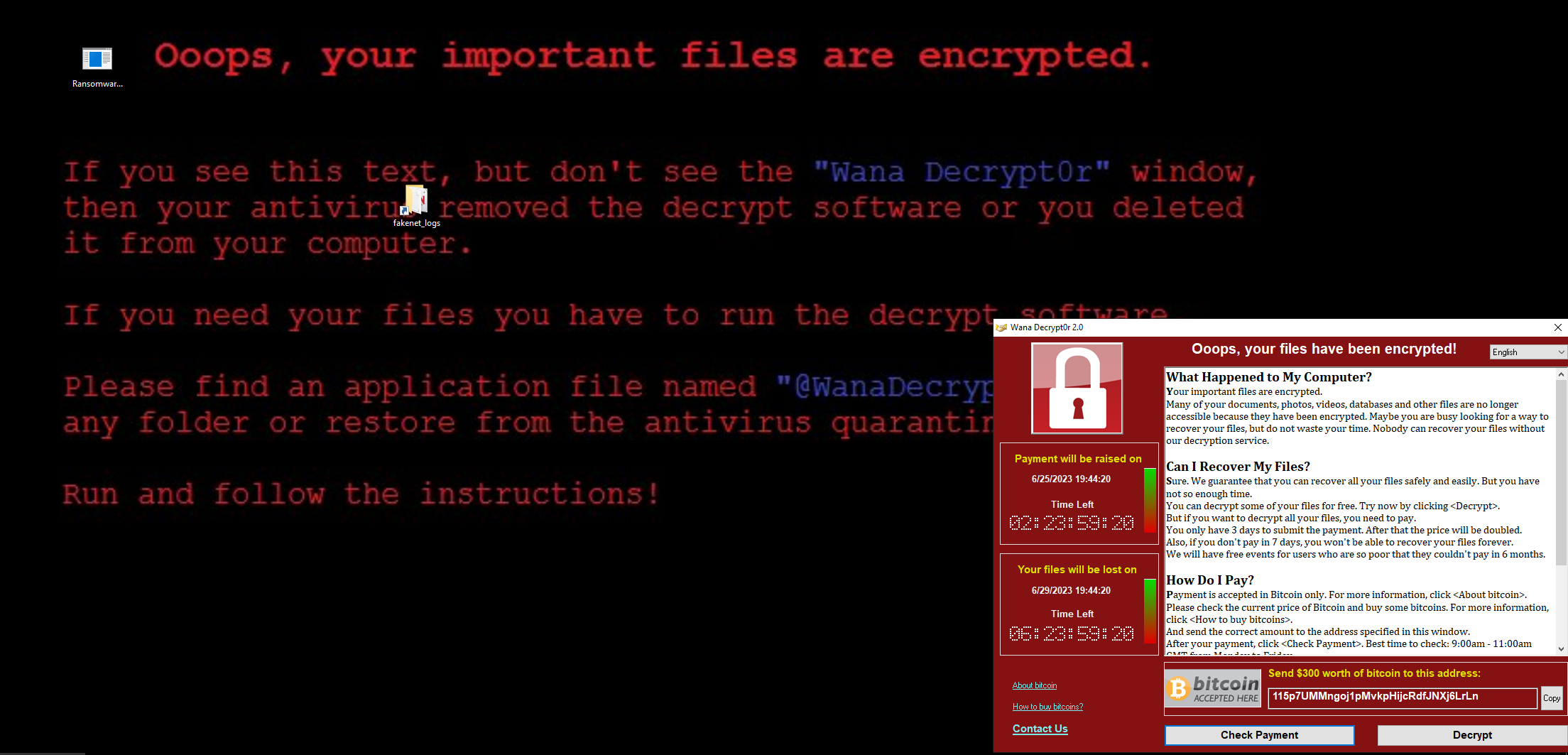

WannaCry popup comes back if you close it

Internet Detonation

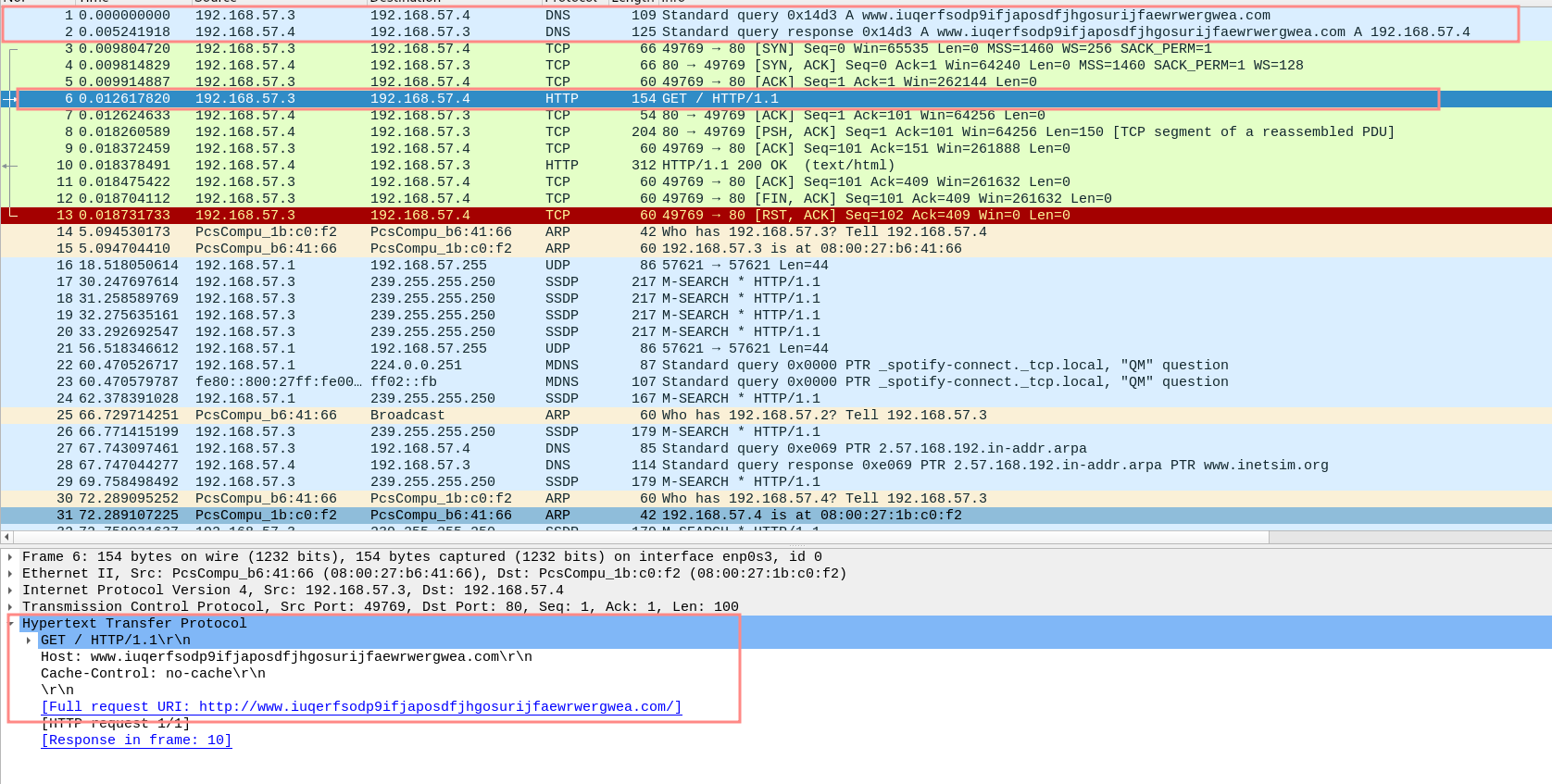

DNS Queried Succeessfully > executes GET against http://www.iuqerfsodp9ifjaposdfjhgosurijfaewrwergwea.com

Advanced Static Analysis

Kill Switch

InternetOpenA prepares the application for future calls (Source: https://learn.microsoft.com/en-us/windows/win32/api/wininet/nf-wininet-internetopena)

InternetOpenUrlA tests the connection to www.iuqerfsodp9ifjaposdfjhgosurijfaewrwergwea.com using the call:

If it can, reach the destination, the program calls InternetCloseHandle to end the internet connection and returns out without malicious action

If the Kill Switch is not activated

fcn.00408090 is called

Reaching for persistence

ChangeServiceConfig2A is often used to change service properties and allow malware to persist.

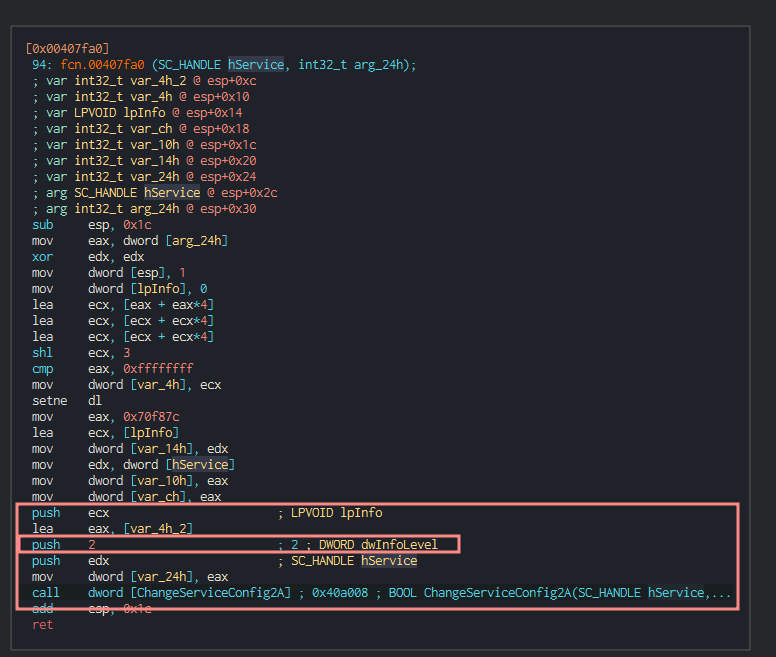

This is WannaCry’s pathway to calling ChangeServiceConfig2A.

Encryption of files

The following seems to be the pathway to looping through all files and begining the encrytion process.

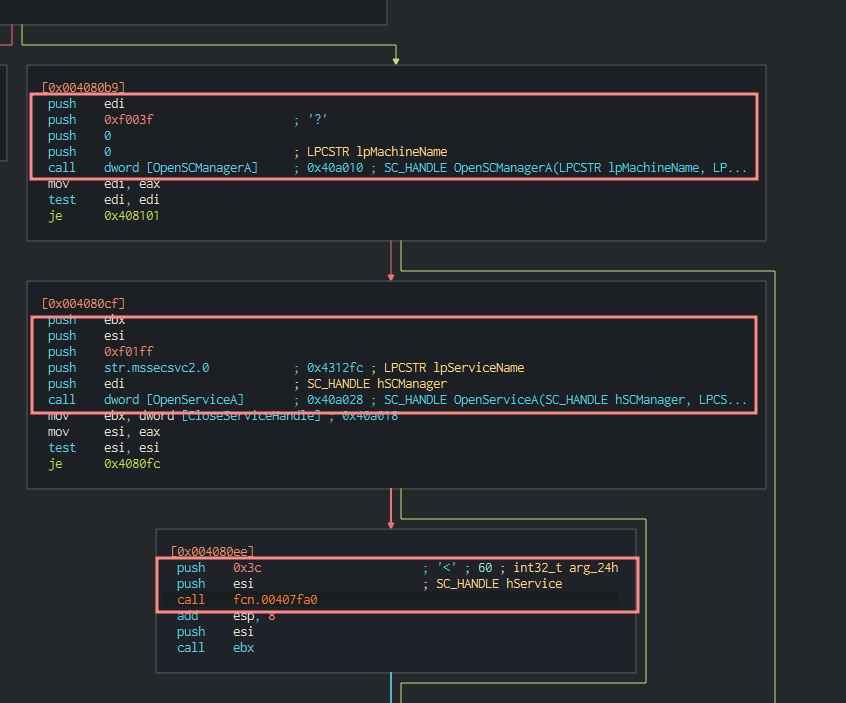

Execute fcn.00407f20

Which creates a Microsoft Security Center Service, if it can open OpenSCManagerA

Then proceed to encrypting files

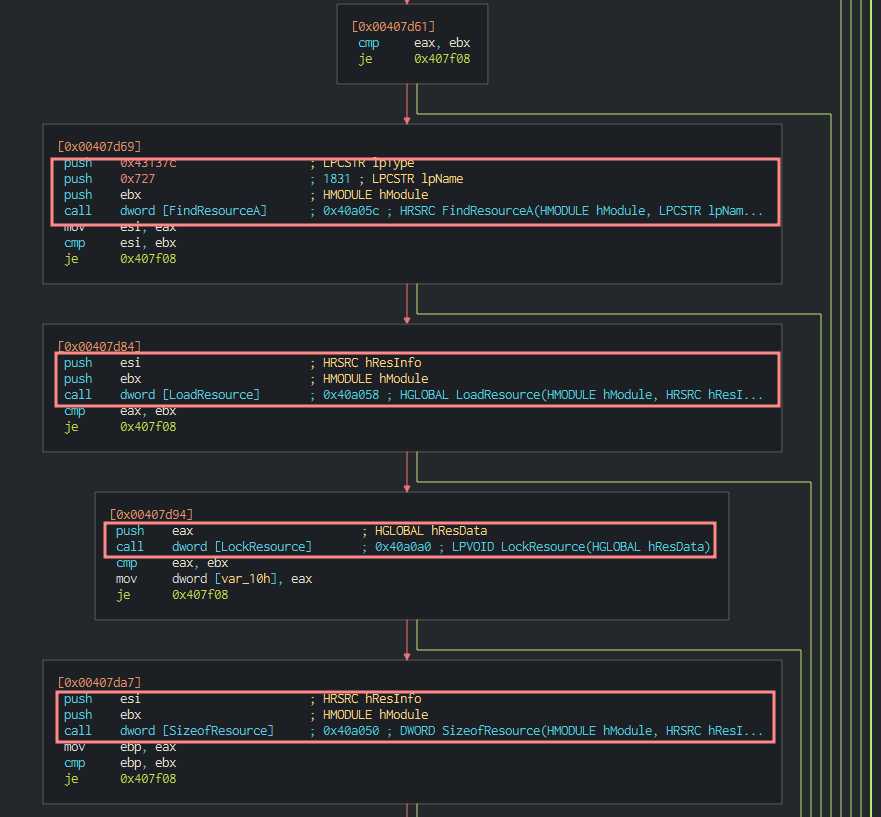

Finding, loading, locking and analyzing the size of resources

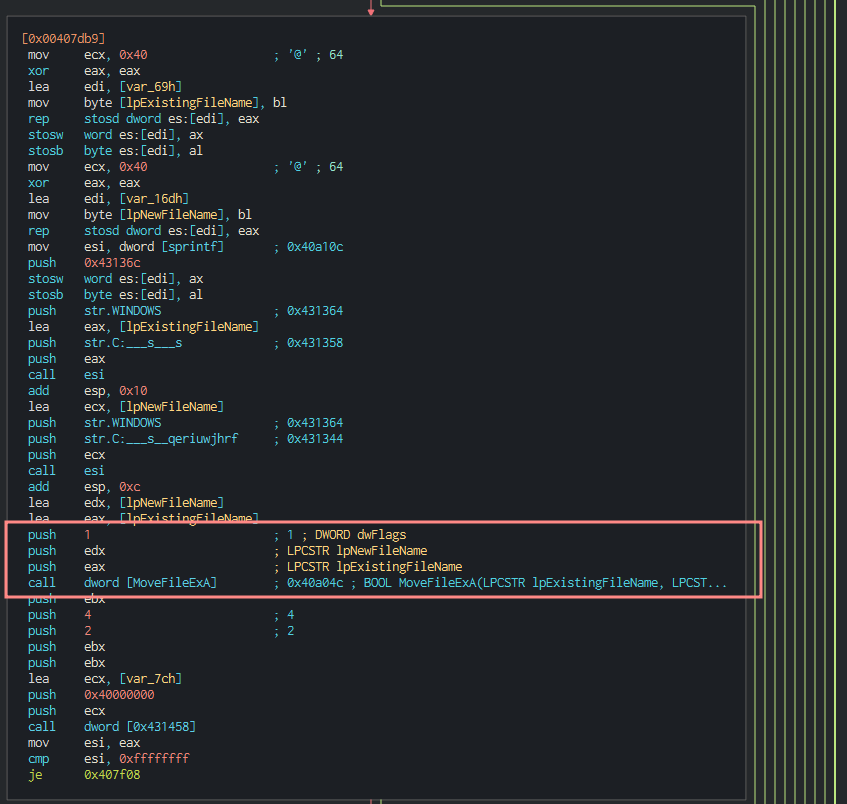

Moving them to their new file extension

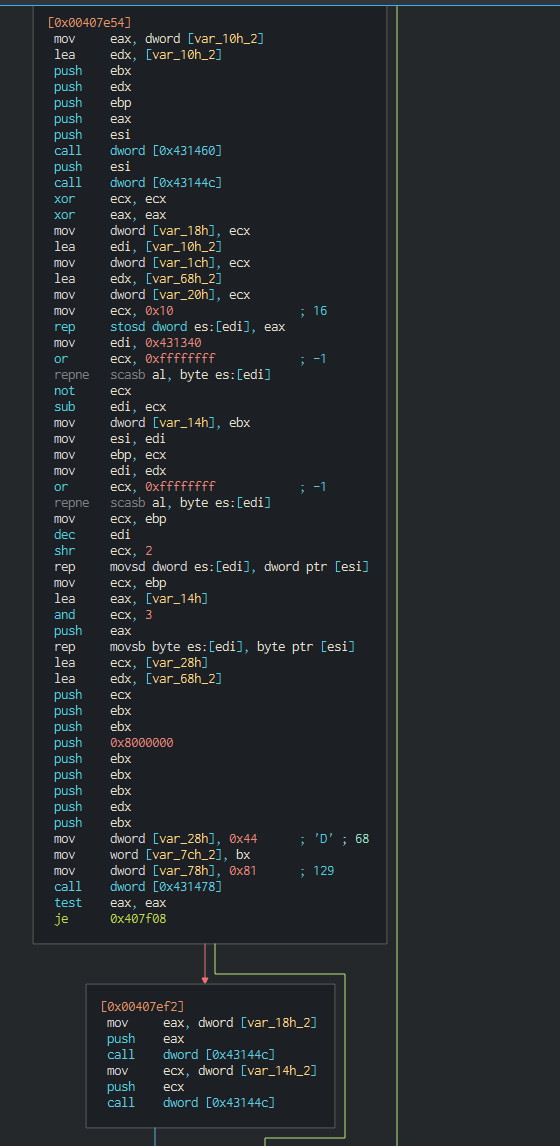

Encrypt.

Advanced Dynamic Analysis

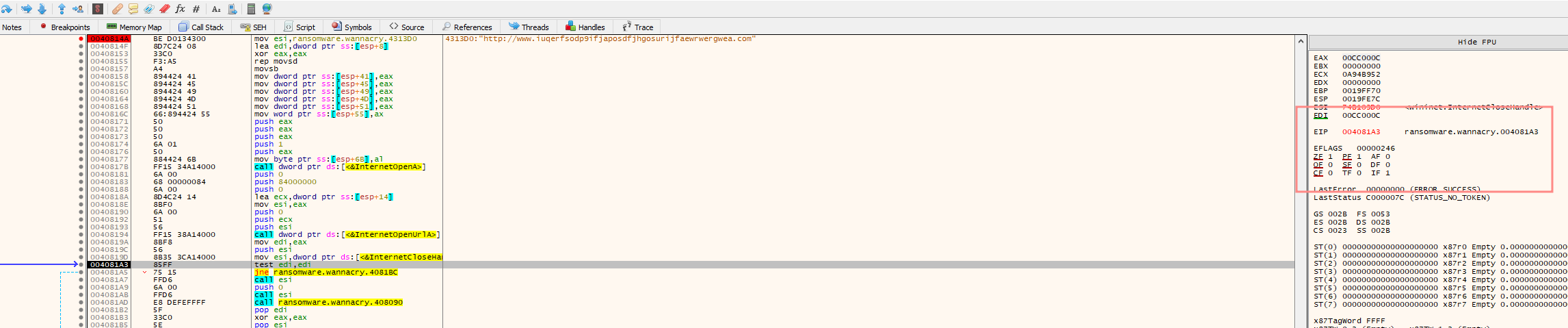

Because the test edi, edi/ call to open the InternetURL was successful ZF is 0

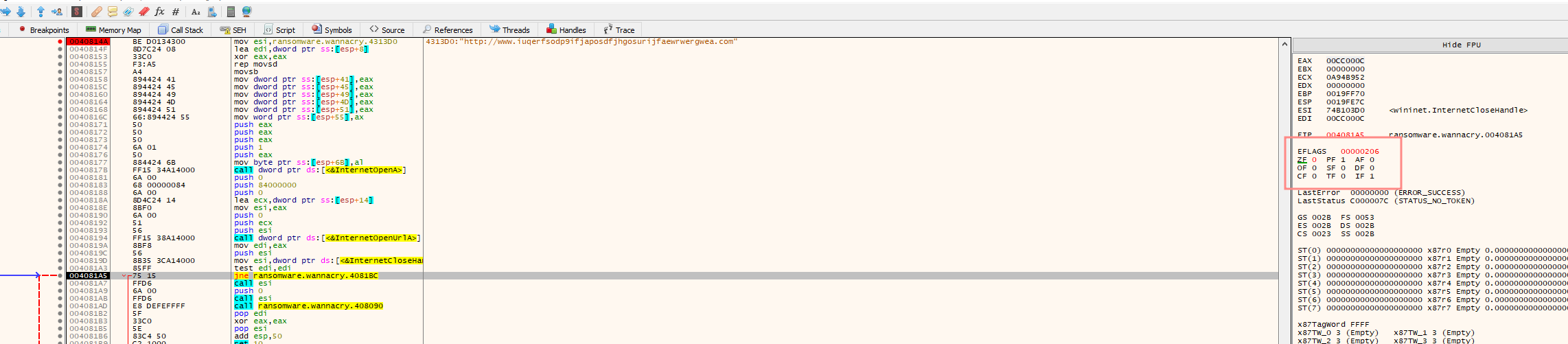

Flipping that to 1 allows for the execution of the ransomware to happen, despite INetSim being up

Indicators of Compromise

Network

GET against http://www.iuqerfsodp9ifjaposdfjhgosurijfaewrwergwea.com

Checking for networked SMB shares

Host-based

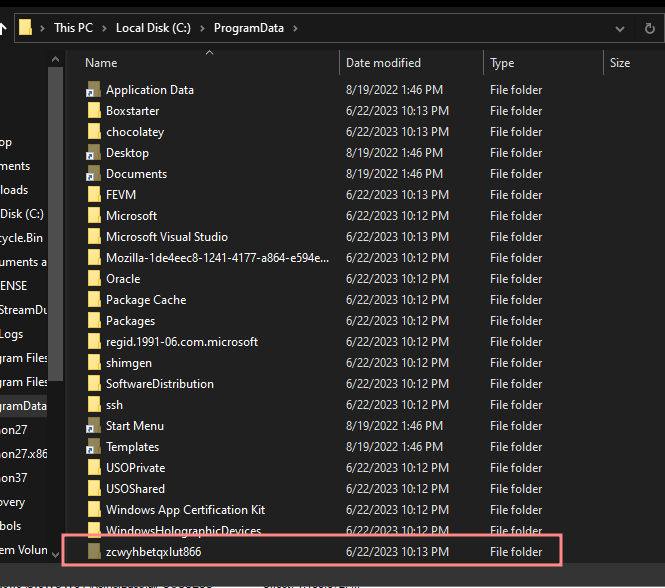

Hidden folder:

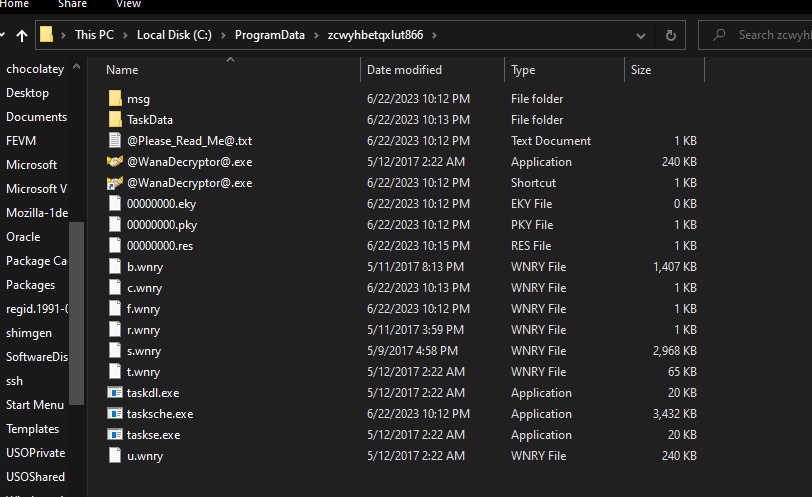

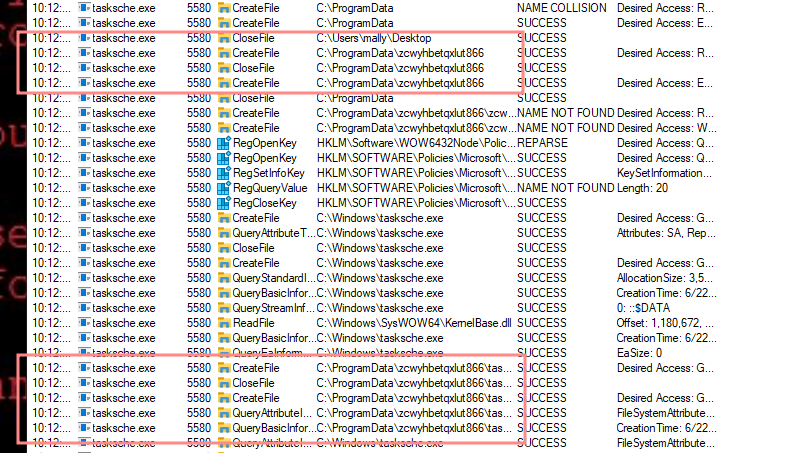

Looks like staging environment:

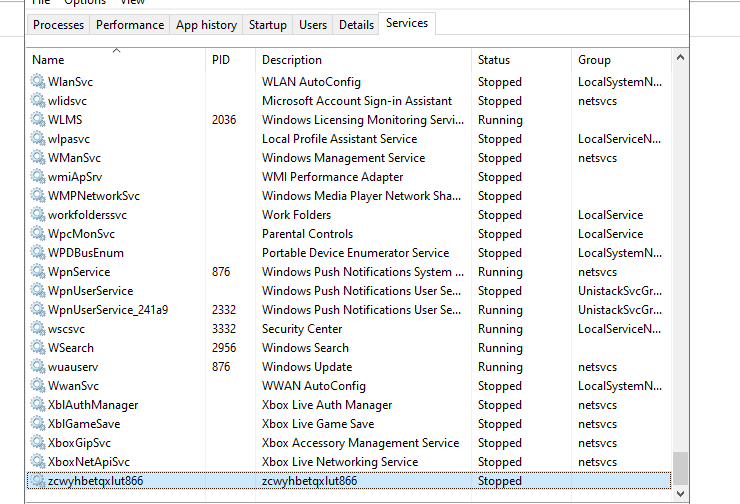

Also now a service – likely to encrypt that is added to the OS after detonation

YARA Rule

Below is a YARA rule that show be able to identify WannaCry in your environment.


rule WannaCry {

    meta:
        last_updated = "2023-06-25"
        author = "close"
        description = "YARA rule for WannaCry"

    strings:
        $wanacryptor = "WanaCrypt0r" wide
        $wanacry = "WANACRY!" fullword
        $msseccenter = "mssecsvc.exe" fullword
        $filepermissions_all = "icacls . /grant Everyone:F /T /C /Q" fullword
        $killurl = "www.iuqerfsodp9ifjaposdfjhgosurijfaewrwergwea.com" fullword
        $tasksche = "tasksche.exe" fullword
        $smb1 = "\\\\172.16.99.5\\IPC$" wide
        $smb2 = "\\\\192.168.56.20\\IPC$" wide
        $templatedpath = "C:\\%s\\qeriuwjhrf"
        $hidden_folder = "attrib +h ."
        $PE_magic_byte="MZ"

    condition:
        $PE_magic_byte at 0
        and $wanacryptor
        and $wanacry
        and $msseccenter
        and $filepermissions_all
        and $killurl
        and $tasksche
        and $smb1
        and $smb2
        and $templatedpath
        and $hidden_folder
}
